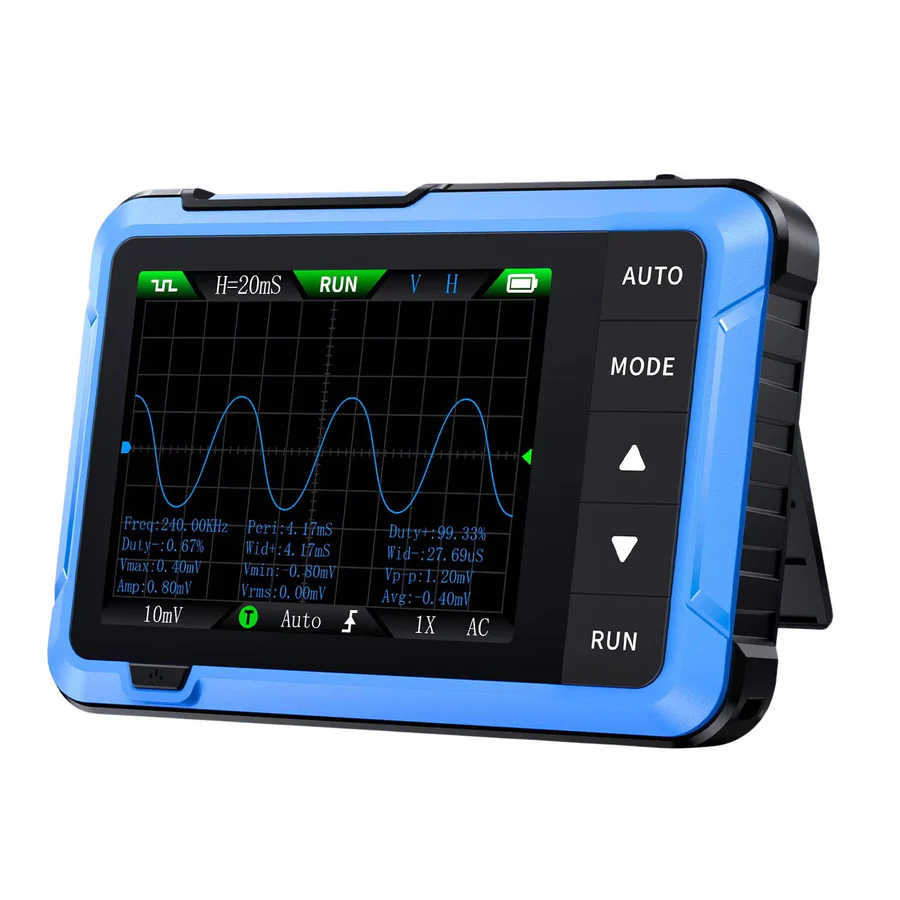

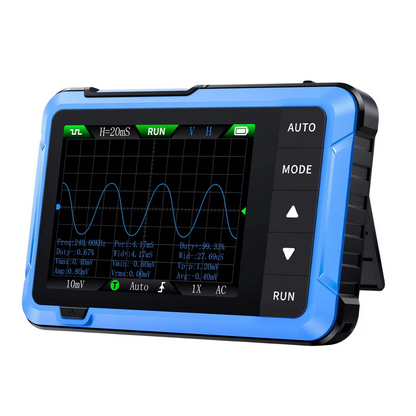

Compact Handheld Oscilloscope for Electronics

Unlock Efficient Circuit Testing with Our Compact Digital Oscilloscope

Take your circuit testing to the next level with our lightweight and portable digital oscilloscope. Featuring instant AUTO configuration and a vibrant 2.8-inch LCD display, you can quickly capture signals without any wait. This means you can work more efficiently and get the results you need fast.

Choose the Right Model for Your Needs

We offer two models to suit your requirements: the Standard and Pro editions. The Standard model is perfect for routine diagnostics, while the Pro edition provides elevated sampling rates and bandwidth for more advanced testing. This means you can choose the model that best fits your needs and budget.

Reliable and Versatile

Both models come equipped with an integrated signal generator, can safely measure voltage up to ±400 V, and are powered by a rechargeable battery that lasts for up to 4 hours during continuous use. This means you can rely on our oscilloscope to get the job done, even in the most demanding environments.

Key Features and Benefits

• Accurate Voltage Measurement: Safely measure voltage up to ±400 V with our built-in safety circuits, giving you peace of mind and accurate results.
• Real-Time Sampling Rate: Capture signals with precision, thanks to our 5 MS/s (Standard) or 48 MS/s (Pro) sampling rates, allowing you to make informed decisions.
• Bandwidth Spectrum: Evaluate high-frequency signals with ease, using our 1 MHz (Standard) or 10 MHz (Pro) bandwidth, and get the data you need to move forward.

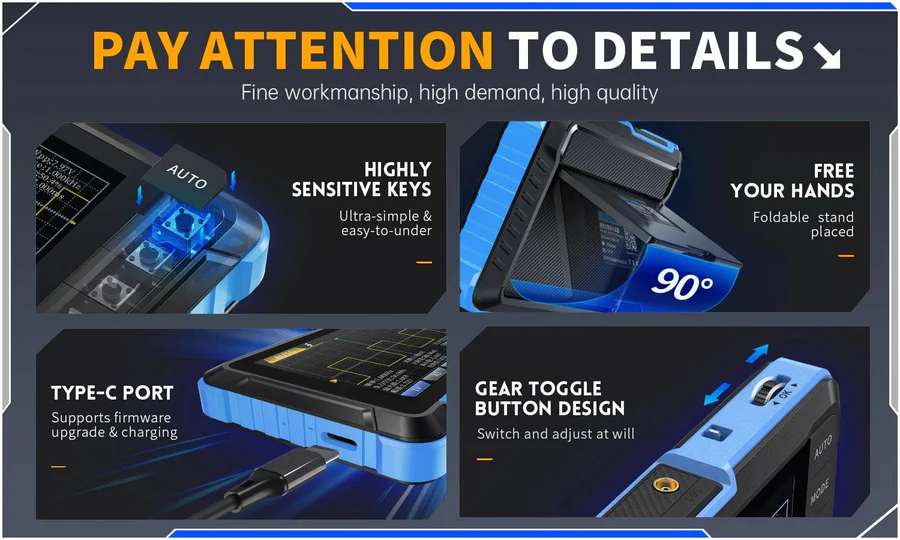

• Quick AUTO Mode: Instantly adjust settings to display waveforms with a single click, saving you time and effort.

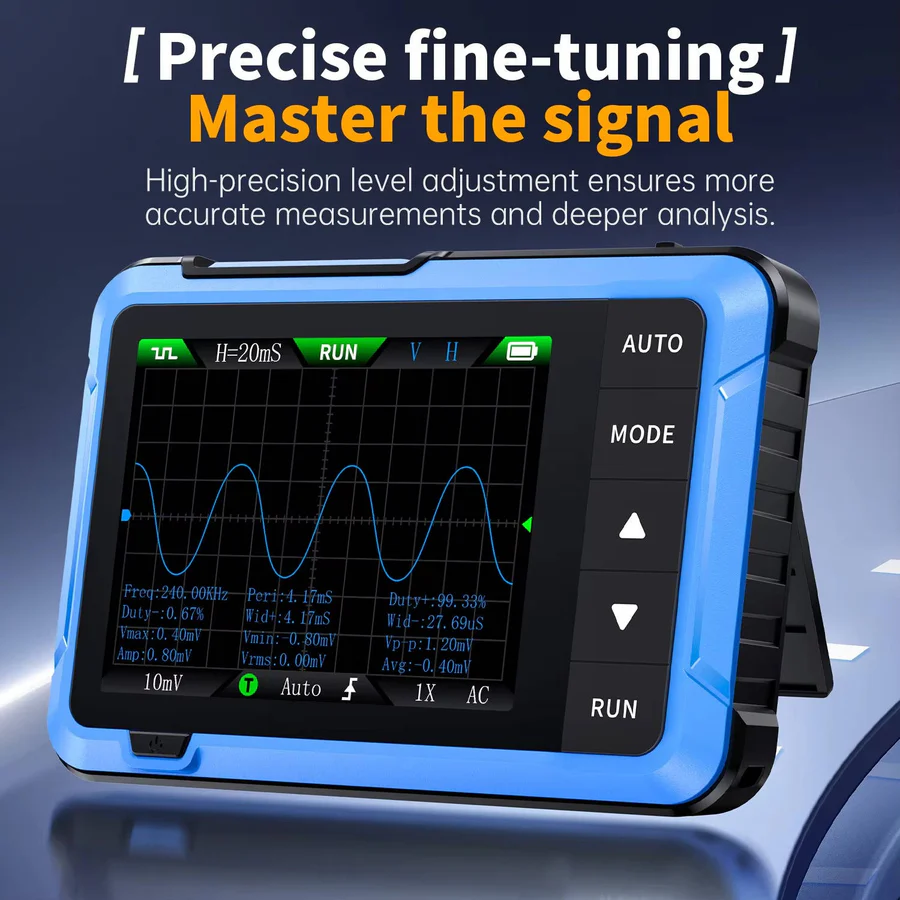

• Bright Display: Clearly view your results on our 2.8-inch LCD with 320×240 resolution, making it easy to analyze your data.

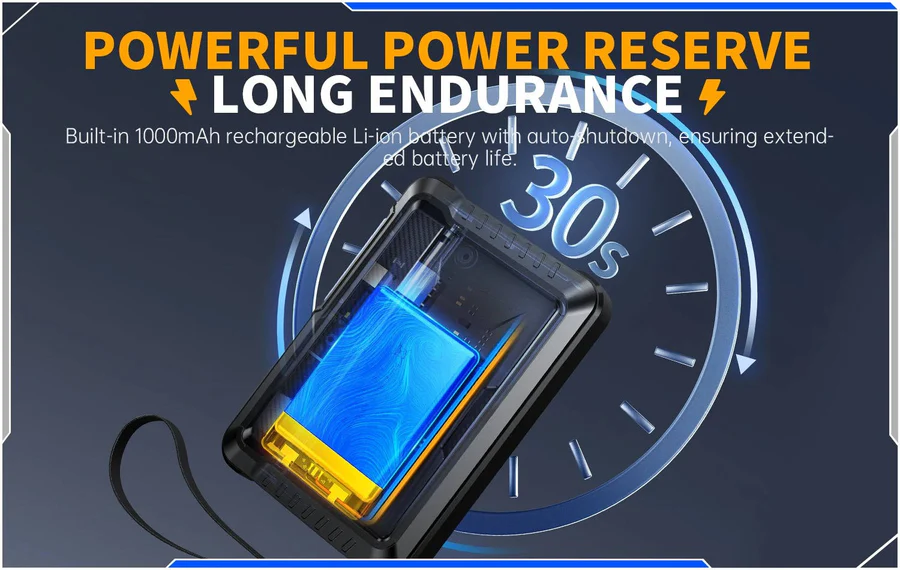

• Long Battery Life: Work uninterrupted for up to 4 hours with our 1000 mAh lithium-ion battery, reducing downtime and increasing productivity.
• Versatile Trigger Modes: Choose from Single, Normal, and Auto options to suit your analysis needs, giving you flexibility and control.
• Integrated Signal Generator: Generate signals with ease, using our 10 kHz (Standard) or 50 kHz (Pro) signal generator, and take your testing to the next level.

Product Specifications

• Display: 2.8-inch LCD
• Screen Resolution: 320×240
• Battery Capacity: 1000 mAh lithium
• Operating Duration: Up to 4 hours
• Voltage Measurement Range: ±400 V
• Sampling Rate: 5 MS/s (Standard), 48 MS/s (Pro)
• Bandwidth: 1 MHz (Standard), 10 MHz (Pro)
• Signal Generator Frequency: 10 kHz (Standard), 50 kHz (Pro)
• Weight: 0.5 lbs

What's Included

• 1 × Portable Digital Oscilloscope

Frequently Asked Questions

Q: What's the difference between the Standard and Pro models?
A: The Standard model offers 5 MS/s sampling with 1 MHz bandwidth, while the Pro model provides 48 MS/s sampling and 10 MHz bandwidth, making it ideal for more advanced applications.

Q: How long does the battery last?
A: Our integrated lithium battery provides up to 4 hours of continuous use, giving you plenty of time to complete your tasks.

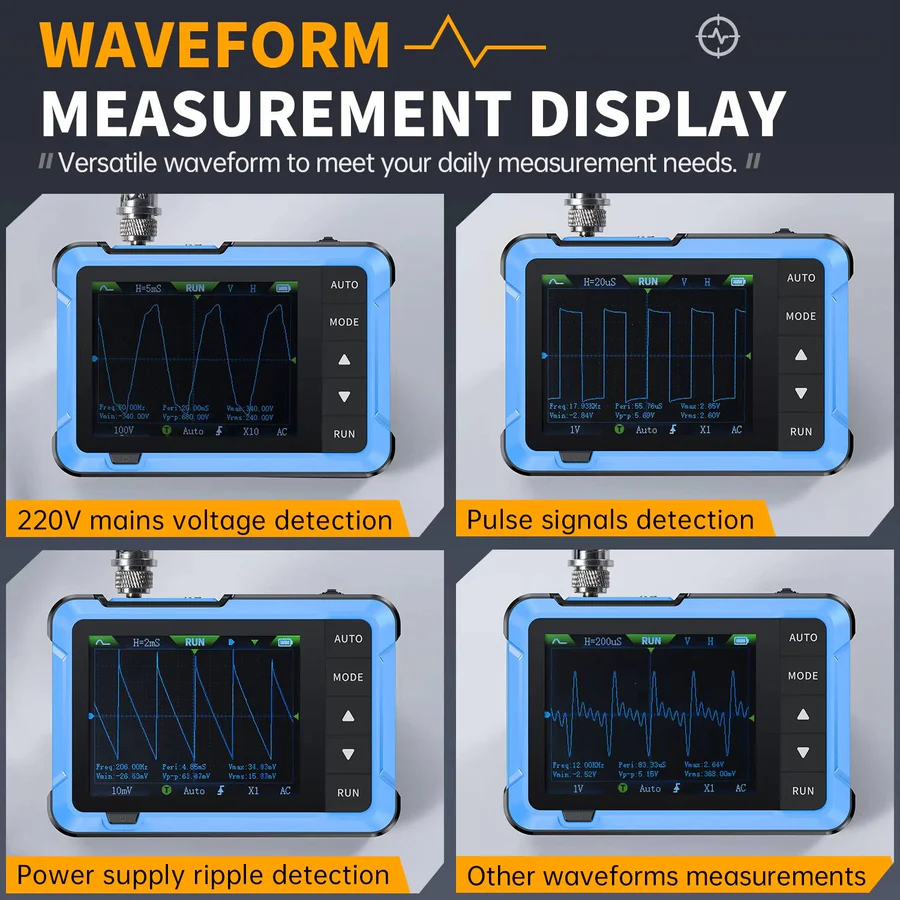

Q: Can it measure both analog and digital signals?
A: Yes, our oscilloscope can test both analog and digital signals, making it a versatile tool for a wide range of applications.

Q: Is it safe to measure high voltage signals?
A: Yes, our oscilloscope can safely measure voltage up to ±400 V, thanks to its built-in safety circuits, giving you peace of mind and protecting your equipment.
